Storage Racks

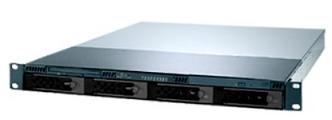

  • SK-1U04


    The 1U 4-bay rack mountable high-density server enclosure is designed for implementing NAS or high availability storage subsystem and supports up to four hot-swappable hard disk drives in SCSI, SAS, SATA, or SATA II 3 Gb/s interface. The server model allows support for a SSI 3.0 / 3.5, CEB 1.0 or AMD Dual Opteron compliant server board 12.0" x 13.0" in size. The storage model allows support for an internal mount storage controller or external mount 5 1/4" RAID, NAS, or DAS controller.

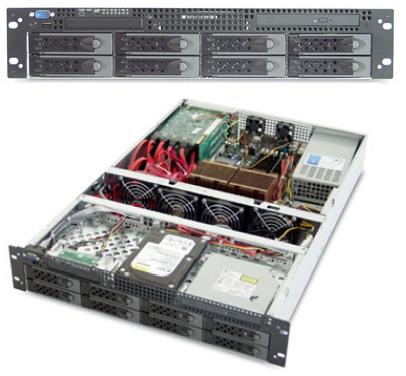

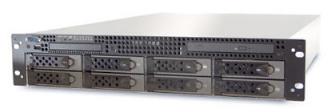

  • SK-2U08

    (Dual Xeon/Xeon Nocona & AMD Dual Opteron)


    The SK-2U08 is a rack mountable 2U chassis designed with the performance & flexibility to support P4, Dual Intel Nocona or Dual AMD Opteron Server Boards in a high density yet cost-effective package. Although its small 2U footprint can be deceiving, it is packed with many features including 8 Hot Swappable SCSI, SATA, SATA II 3 Gb/s or SAS drive bays, Slim CD, Slim FDD, fixed 3.5" drive, 6 High Speed Ball Bearing Fans and either a Fixed or Hot Swappable Power Supply.

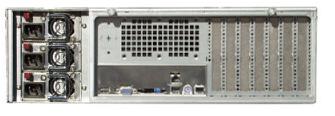

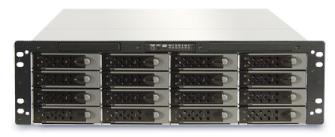

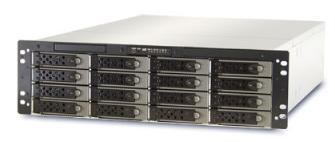

  • SK-3U16

    (Dual Xeon/Xeon Nocona & AMD Dual Opteron)


    The 3U 16-bay SK-3U16 rack mountable storage enclosure is designed for storage server system and supports up to sixteen hot-swappable hard disk drives, available in SCSI, SATA, SATA II 3 Gb/s or SAS interface. SR316 allows support for a SSI 3.0 / 3.5, CEB 1.0 or AMD Dual Opteron compliant server board 12.0" x 13.0" in size. The storage model allows support for an internal mount storage controller or external mount 5 1/4" RAID.

    Supports the newly released Intel Server Boards SE7320SP2, SE7525GP2, SE7520BD2, and SE7520AF2 with Xeon Nocona Processor, CEB 1.0 & SSI 3.5 Spec

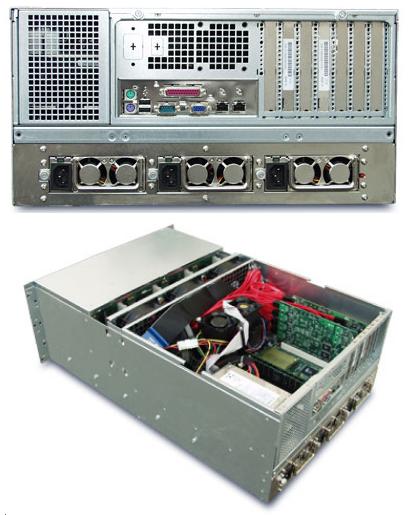

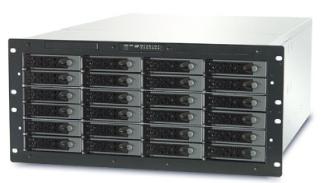

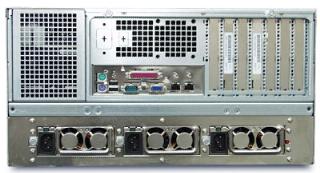

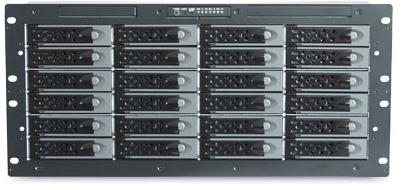

  • SK-5U24

    (Dual Xeon/Xeon Nocona & AMD Dual Opteron)




    The 5U 24-bay SK-5U24 rack mountable storage enclosure is designed for storage server system and supports up to twenty-four hot-swappable hard disk drives, available in SCSI, SATA, SATA II 3 Gb/s, or SAS interface. SR524 allows support for a SSI 3.0 / 3.5, CEB 1.0 or AMD Dual Opteron compliant server board 12.0" x 13.0" in size. The storage model allows for an external mount 5 1/4" RAID or NAS controller.

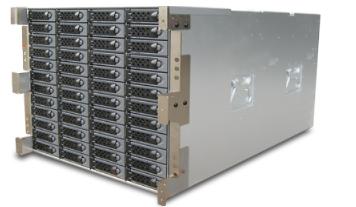

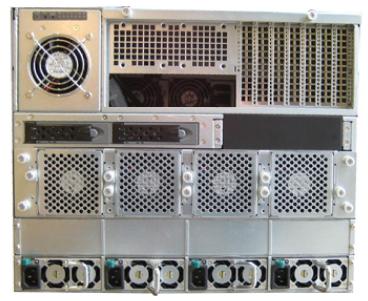

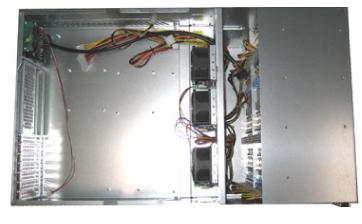

  • SK-8U50

    The 8U SK-8U50 rack mountable storage enclosure is designed for storage server system and supports up to 50 hot-swappable hard disk drives. The server model supports Intel® Dual/Quad core Xeon or AMD® Quad Opteron compliant server board 13.0" x 16.0" size. The storage model supports an external mount 5 1/4" RAID

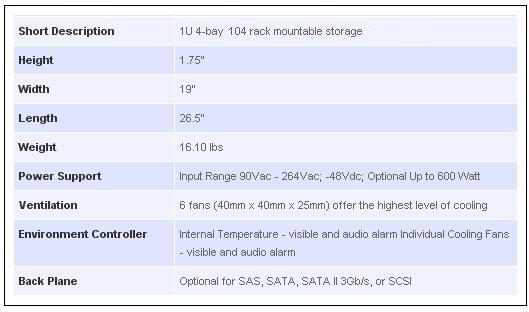

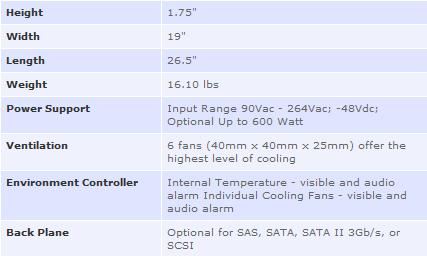

SK-1U04 specifications:

(click diagram to enlarge)









Send us e-mail or specifications to sales@bravotron.com today to get a prompt response!

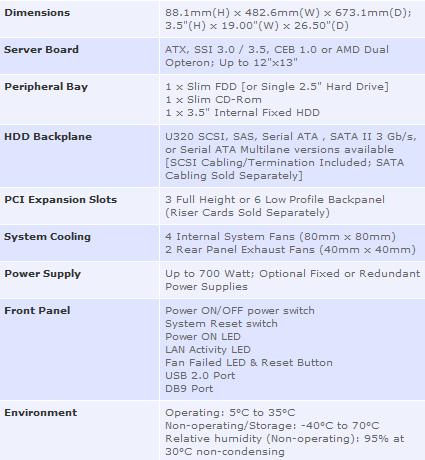

SK-2U08 specifications:

(click diagram to enlarge)

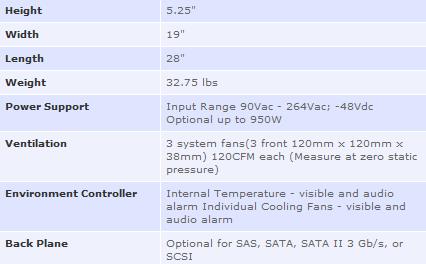

 SK-3U16 specifications:

 (click diagram to enlarge)




Power supply selections:


 Backplane selections:










 Send us e-mail or specifications to sales@bravotron.com today to get a prompt response!

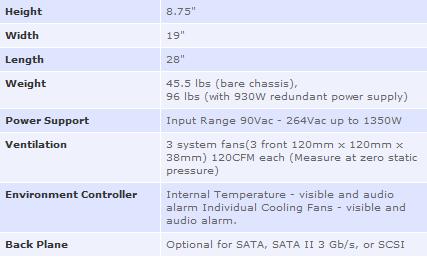

SK-5U24 specifications:

(click below diagram to enlarge)

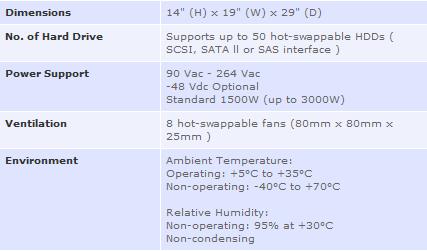

SK-8U50 specifications:

(click diagram to enlarge)
